How to Fade an Image Into and Out of a Scene in Unity

This technique can be useful when you want to fade in some text or maybe fade out some falling enemies.

Step 1 Implementation

It's quite easy to implement. Just follow the steps given below.

1.1 Hierarchy Set Up

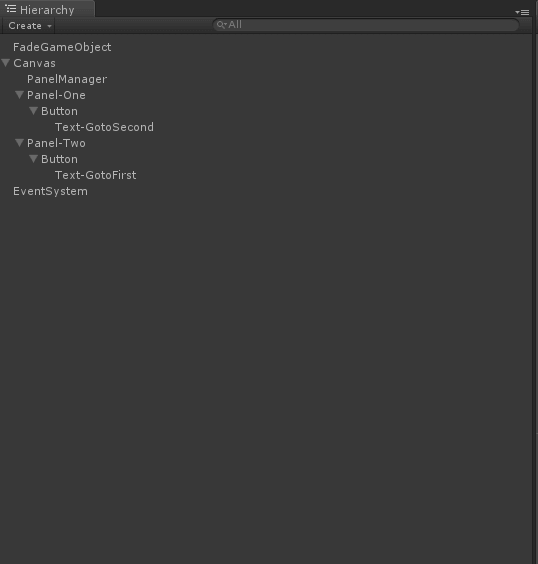

• Create a new project and set an environment as shown above.
• Make two panels:
  1. PanelOne
  2. PanelTwo
• Each panel should contain one Button.
• Make two empty game objects and name them as PanelManager and FadeGameobject.

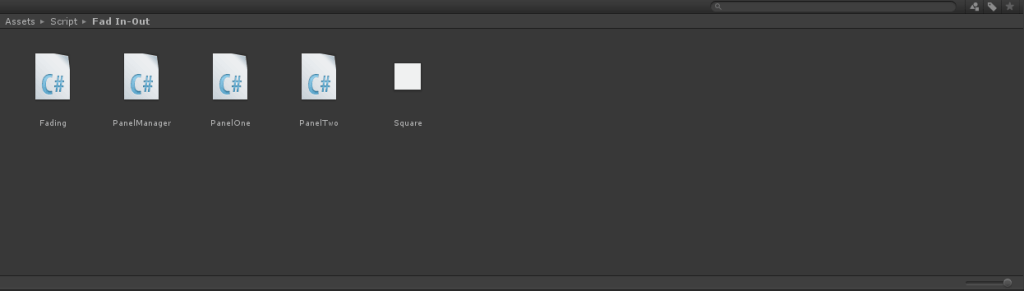

• Now, make 4 scripts named PanelOne, PanelTwo, PanelManager and Fading.

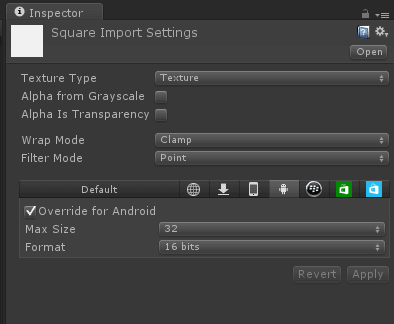

• Select one white or black image for applying the effect and set it as below.

1.2 Panel Script

• Now what we have to do is set a button which when pressed will active and deactivate corresponding panel and fade in-out effect will be executed.

• Write the code given below in Panel Manager Script.

public class PanelManager : MonoBehaviour {
public GameObject panelOne, panelTwo;
public static PanelManager instance;
void Awake()
{
instance = this;
}
}

• Write the code given below in Panel One Script.

public class PanelOne : MonoBehaviour {
// Use this for initialization
void OnEnable()
{
//It will find gameobject which have fading script and call its method.
GameObject.Find("FadeGameObject").GetComponent<Fading>(). BeginFade(-1);
}
public void onGotoSecondButtonClick()
{
PanelManager.instance.panelTwo.gameObject.SetActive(true);
this.gameObject.SetActive(false);
}
}

• Write the below code in Panel Two Script.

public class PanelTwo : MonoBehaviour {

void OnEnable()
{
GameObject.Find("FadeGameObject").GetComponent<Fading>(). BeginFade(-1);
}
public void onGotoFirstButtonClick()
{
this.gameObject.SetActive(false);
PanelManager.instance.panelOne.gameObject.SetActive(true);
}
}

• Now, what we actually have to do is just active and deactivate the panel.

1.3 Fading Script

• In fading script write the code given below.

public class Fading : MonoBehaviour
{
public Texture2D fadeOutTexture; // the texture which you want to overlay to the screen
public float fadeSpeed = 0.8f;
private int drawDepth = -1000; // Low number will render on top
private float alpha = 1.0f; // texture alpha value
private int fadeDir = -1; // the direction to fade: in = -1 or out = 1
void OnGUI()
{
alpha += fadeDir * fadeSpeed * Time.deltaTime;
alpha = Mathf.Clamp01(alpha);
GUI.color = new Color(GUI.color.r, GUI.color.g, GUI.color.b, alpha);
GUI.depth = drawDepth;
GUI.DrawTexture(new Rect(0, 0, Screen.width, Screen.height), fadeOutTexture);
}
public float BeginFade(int direction)
{
alpha = 1;
fadeDir = direction;
return (fadeSpeed);
}
}

• Apply Fading script to fadeGameobject in inspector window and give appropriate texture to it.

1.4 Apply Script To Object

• Apply PanelOne script to panel one and PanelTwo script to panel two gameobject.
• Apply panelmanager script to PanelManager gameobject.
• Apply references of panleOne and panelTwo in panelManager gameobject.

1.5 Execute Code

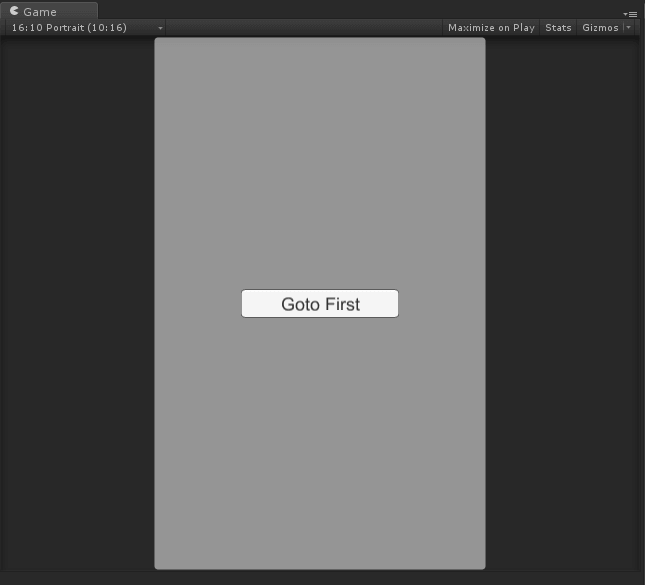

• Now, run the program and see the effect.
• Just apply this code in any OnEnable method and it will perform fade in-out operation.

void OnEnable()
{
//It will find gameobject which has fading script and will call its method.
GameObject.Find("FadeGameObject").GetComponent<Fading>(). BeginFade(-1);
}

I hope this blog post will help you to how to Fade an Image into and Out of a Scene in Unity. Let me know in comment if you have any questions regarding Unity. I will reply you ASAP.
